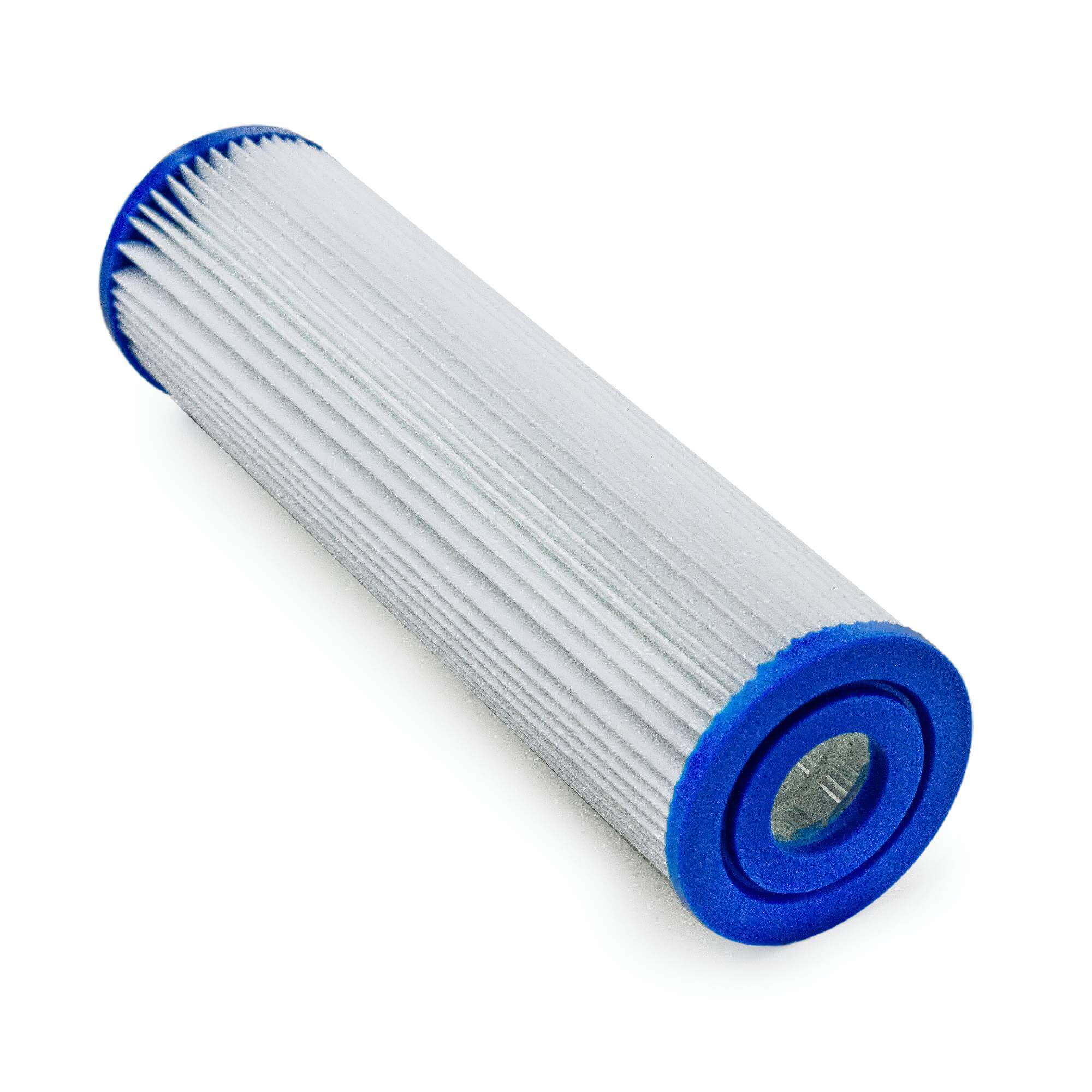

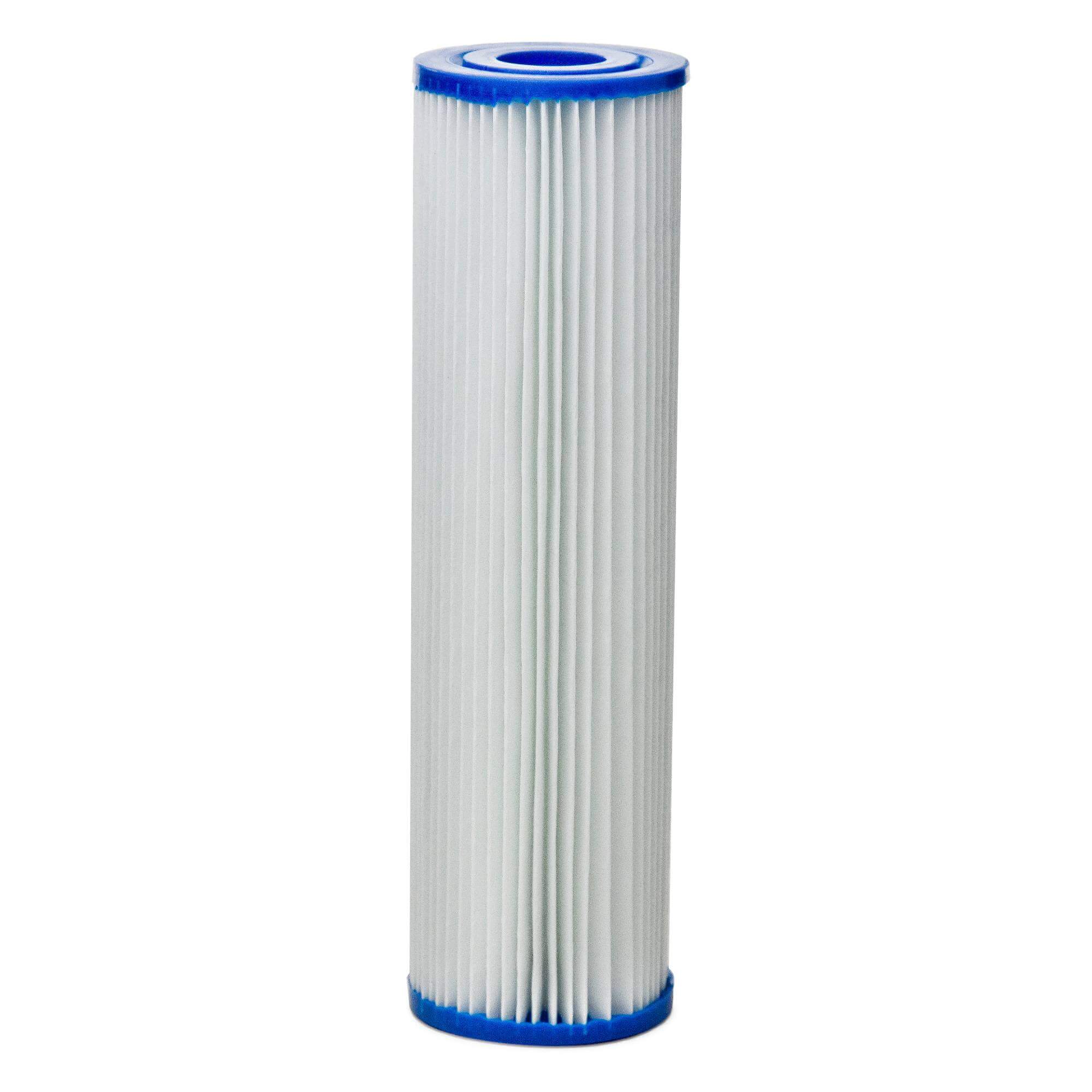

The Pentek ECP20-10 10" Sediment Filter provides higher flow rates while removing dirt and sediment from your water at high capacity. The ECP2010 fits in 10 inch filter housings made by American Plumber, Ametek, Bruner, Culligan, Cuno, Harmsco, Keystone, Kleen Plus, Pentek, Plymouth Products, US Filters and Water Resources. It is also known as item number 25548343 and 255483-43.
The ECP20-10 is made from resin-impregnated cellulose and polyester and has a 20 micron nominal rating. It features an extremely low pressure drop. Whereas most cartridges contain only 4.5 square feet of surface area, the standard 10" ECP Series cartridges such as this one contain six square feet of media. The added surface area allows the filter to catch more sediment than filters with smaller surface areas.
ECP Series cartridge end caps feature a color-coding system for easy identification of micron ratings: Tan (1-micron), White (5-micron), Blue (20-micron), Yellow (50-micron).
The Pentek ECP2010 specifications:
- Micron Rating: 20 Micron (nominal)
- Reduces: Dirt, Sediment, Rust and Sand
- Flow Rate: <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm)
- Temperature Rating: 40-125 F
- Dimensions: 2 5/8" x 9 3/4" (67mm x 248mm)
This filter should be changed every 3 to 6 months depending on water quality and usage.
Complete ECP20-10 Specifications
