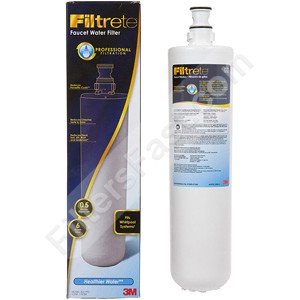

3M Filtrete 3US-PF01 Filter Replacement Cartridge

The 3M Filtrete 3US-PF01 is the advanced replacement filter cartridge designed to fit Filtrete Systems 3US-AS01, 3US-PS01 and Whirlpool Systems WHCF-SUF, WHCF-SUFC. This is a genuine 3M Filtrete Professional Water Filter. 54417. Replaces the old part number WHCF-SRC and WHCF-SR.

The 3M Filtrete 3USPF01 Faucet Water Filter Cartridge has been NSF/ANSI Tested and Certified for the reduction of the following:

• Chlorine Taste & Odor
• Paracitic Cysts ( Giardia, Cryptosporidium )

The 3M Filtrete 3US-PFO1 Filter also reduces:

• Sand
• Soil
• Silt
• Rust
• Sediment

The 3US-PF01 Product Specifications:

• Micron Rating: 0.5
• Capacity: 2,000 or 6 months
• Flow Rate: 2.0 GPM
• Operating Temp: 40-100 F
• Operating Pressure: 25-125 psi
• Dimensions: 13 11/16" x 3 3/16"
• No Tool Required for filter change
• Filtrete Systems equipped with an internal shut-off valve

Install Instructions

• Turn cartridge a quarter turn to the left until it stops. At this point, both inlet and outlet ports are closed and water pressure has been relieved.
• Pull used cartridge straight down. Discard cartridge. Some wettness may be present
• Push new cartridge into filter head. Turn cartridge a quarter turn to the right until it stops.
• Turn cold water on for 5 minutes to flush new filter. This will expell any loose carbon fines or trapped air.
