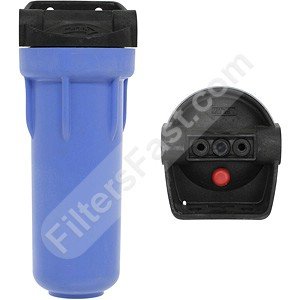

The Pentek 150574 Standard Black/Blue 3/4" Filter Housing features 3/4" NPT and a mounting bracket built right into the cap for easy installation! Also comes with pressure release. #103G Standard Black/Blue 3/4" IB MM w/pr.
The red pressure-relief button on the cap makes filter changes easier by releasing any pressure inside the housing.
Pentek 150574, #10 3G Standard Housing Specs:
- Connections: 3/4" NPT
- Dimensions: 13 1/4" x 5 3/4"
- Max Temp: 125 F
- Max Pressure: 125 psi
- NSF Tested & Certified
- Flow Rate: 10 GPM @ 1 psi (based on filter)
- Pressure Release
- Accomodates Catridges From 2 1/4" to 3 1/8" Diameter
- Intregal Bracket Mount (cap contains predrilled & tapped holes for mounting differiencal pressure gauges)
Mounting Bracket MC-1A can be used with this housing.
Please note you must order the gauge for this housing separately. The housing will not work without a gauge. Pentek gauge 143549 or gauge 143550 may be used.
Click these links to view carbon and sediment filters for 10" standard filter housings.
View the Full Specifications 150574 Housing
