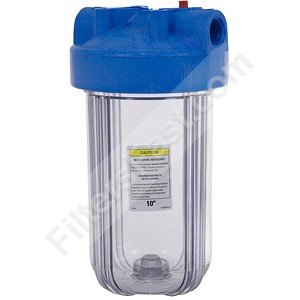

Pentek 166219, W10-BC 1" #10 Big Clear Housing

166219

The Pentek 166219, American Plumber W10-BC 1" #10 Big Clear Housing can be used in a variety of applications to meet your filtration needs. Also known as 10" Big Clear and Whirlpool whcf-dwhbb. Features 1" FPT connections.

The red pressure-relief button on the cap makes filter changes easier by releasing any pressure inside the housing.

The 166219-43 Big Clear Specifications:

• Dimensions: 13 1/2" x 7 1/8"
• Flow Rate: 1 psi drop @ 15 GPM (based on filter used)
• Max Temp: 100 F
• Max Pressure: 100 psi
• Materials: Lexan and Polypropylene
• Connections: 1" NPT
• Accepts 4 1/2" Filter Cartridges
• O-Ring Replacement: American Plumber WBC-OR 151254
• Uses Mounting Bracket WB-SS

Filters are sold seperately.

Click these links to view carbon and sediment filters for 10" Big Blue filter housings.

Also, please note that this housing should not be installed outdoors in direct sunlight.

Please View the Product Manual
