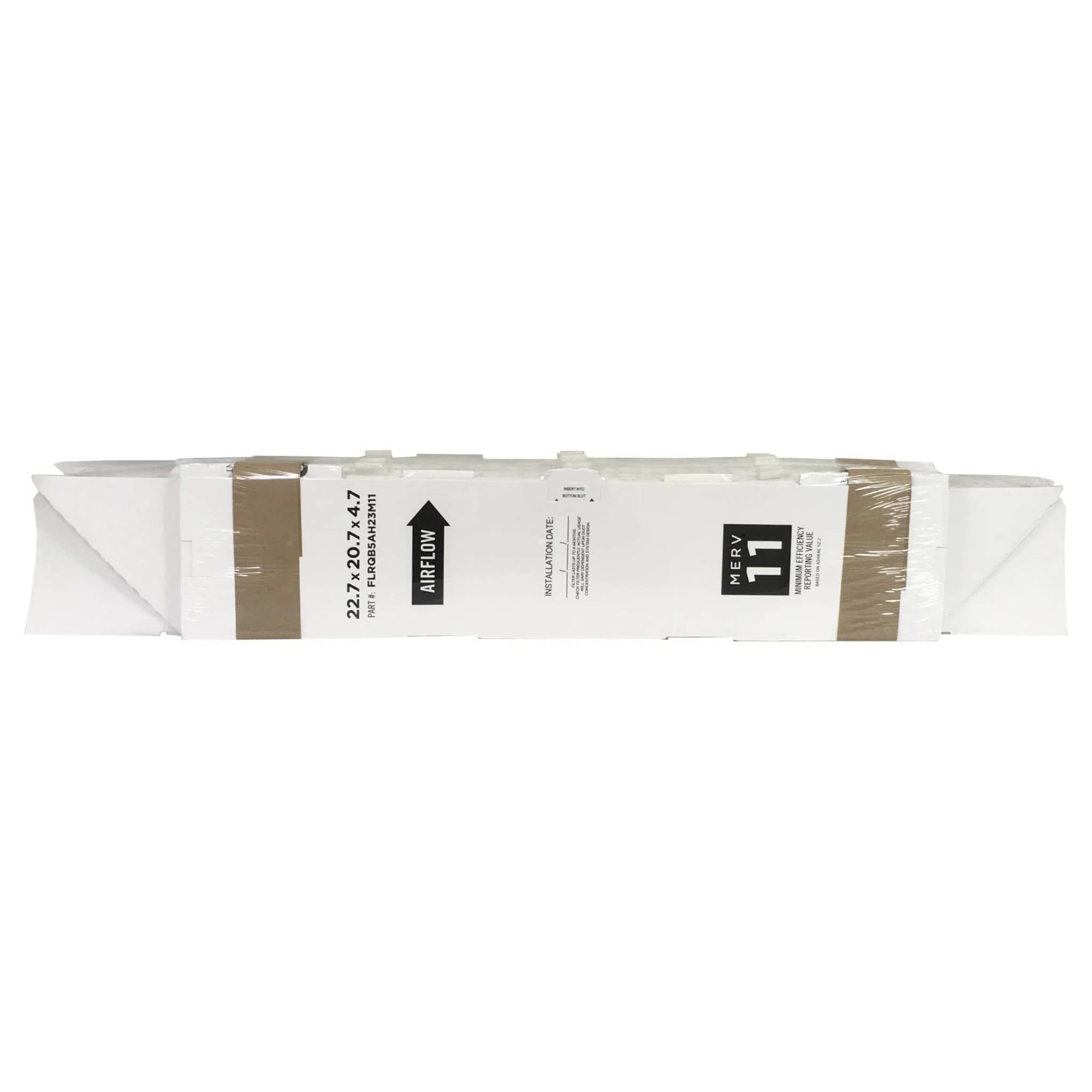

Trane FLRQB5DN17M11 MERV 11 QuikBox Filter 16.7"x20"x4.70" 2-PackThe Genuine Trane FLRQB5AH23M11 22.7x20.7x4.70 MERV 11 QuikBox Furnace & AC Air Filter - 2-Pack is the correct replacement media filter for the Trane TFM and Trane QuikBox filter cabinets. This is a synthetic fiber filter in a chipboard frame that ships flat and pops up to a finished assembly in less than one minute. This filter will replace current Trane expandable type media and BAYFRAME kits that have been standard in the TFM filter cabinet. The QuikBox media is backward compatible to fit all TFM cabinets in the field, as well as new QuikBox cabinets. This Trane QuikBox Media Filter reduces household dust and allergens as an integral part of a whole home comfort system.
NOTE: Furnace filter cabinets are not included.
Specifications:
- Brand: Trane
- Part Number: FLRQB5AH23M11, DTRFLRQB5AH23M11
- Pack Size: 2
- Actual Dimensions: 22.7" x 20.7" x 4.70"
- MERV Rating: 11
- Filter Life: 6 months
- Filter Media: Synthetic Fiber
- Reduces household dust and allergens
- Note: Furnace filter cabinets are not included
How do you install the Trane FLRQB5AH23M11?
BOTTOM MOUNT INSTALLATION
- Rotate the two quarter turn latches on the access door to remove the access door from the enclosure and set it aside. Remove the filter and set aside until the enclosure is installed.
- Position the furnace/air handler on a protective pad on the floor with the bottom of the furnace/air handler in the up position.
- Install the self-adhesive gasket material onto the flange of the discharge-air side of the filter enclosure.
- Position the Trane FLRQB5AH23M11 filter enclosure on the bottom of the unit with the gasket against the unit. Align the rear of the enclosure with the rear of the unit and the two sides of the enclosure with the sides of the unit. The front of the enclosure will NOT align flush with the front of the unit.
- Check that the front of the filter enclosure is facing the front of the unit.
- Securely attach the filter enclosure to the unit using the heavy-duty self-tapping sheet metal screws. Recommended screw spec: #12-14, 1/2” length (3/8” if only two metal thickness), hex washer head, slotted drive, Type AB.
SIDE MOUNT INSTALLATION
- Rotate the two quarter turn latches on the access door to remove the access door from the enclosure and set it aside. Remove the Trane FLRQB5AH23M11 filter, and set aside until the enclosure is installed.
- Lay the furnace on a protective pad on the floor with the surface on which the filter enclosure will be installed in the up position.
- Align the rear of the filter enclosure flush with the rear of the furnace. Align the bottom of the filter enclosure 1/4 inch above the bottom of the furnace. Mark the inside opening of the filter enclosure using the inside edge of the mounting flange as a guide. Move the enclosure and cut the opening.
- Install the self-adhesive gasket material onto the flange of the discharge-air side of the filter enclosure.
- Position the filter, with the gasket against the furnace, over the furnace enclosure opening cut previously in step 3.
- Check that the front of the Trane FLRQB5AH23M11 filter is facing the front of the furnace.
- Securely attach the filter to the furnace using the heavy-duty self-tapping sheet metal screws. Recommended screw spec: #12-14, 1/2” length (3/8” if only two metal thickness), hex washer head, slotted drive, Type AB.
- Seal all joints in the return air system to prevent dust from entering the airstream.
How often should you replace the Trane FLRQB5AH23M11?
- Changing your Trane FLRQB5AH23M11 is a very quick and easy process that should be done once every six months.
What contaminants does the Trane FLRQB5AH23M11 reduce?
-
The Trane FLRQB5AH23M11 is a MERV 11 air filter, which means that it reduces the following contaminants:
- Dust
- Pollen
- Mold Spores
- Pet Dander
- Smoke & Smog
- Allergens
Compatible Parts:
The Trane FLRQB5AH23M11 is the correct replacement for the following part numbers:
